Amps:

Voltage (VAC):

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Switch:

Pump On/Off Levels:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

7.6 (16)

120

60Hz

Single

3,450

PSC (DC Brush)

Class B

S1 (S3), Continuous

Lip Seal

Stainless Steel

Ball Bearing

Ball Bearing

Oil (Water) Cooled

1-1/2" NPT

10 ft.

SJTW 18 (16)AWG

Cast Iron

Thermoplastic

Thermoplastic

Vertical

7.7" / 4.7"

NBR

1/4"

95 degrees (F)

Stainless Steel

Product Brochure

Dimensional Drawing

Installation Guide

Product Catalog

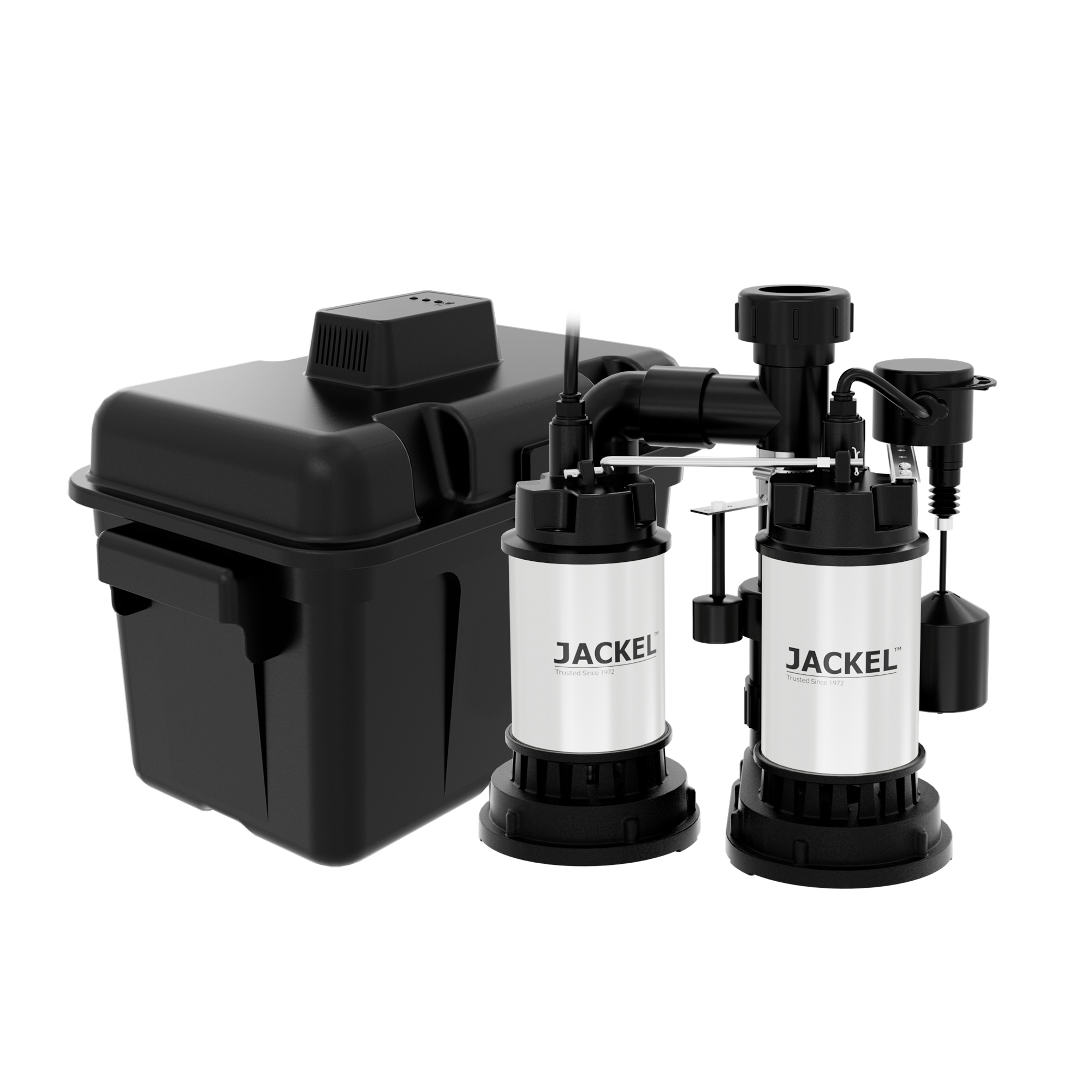

• System includes: primary pump and switch, backup pump and switch, alarm system, charger and battery control box (battery not included)

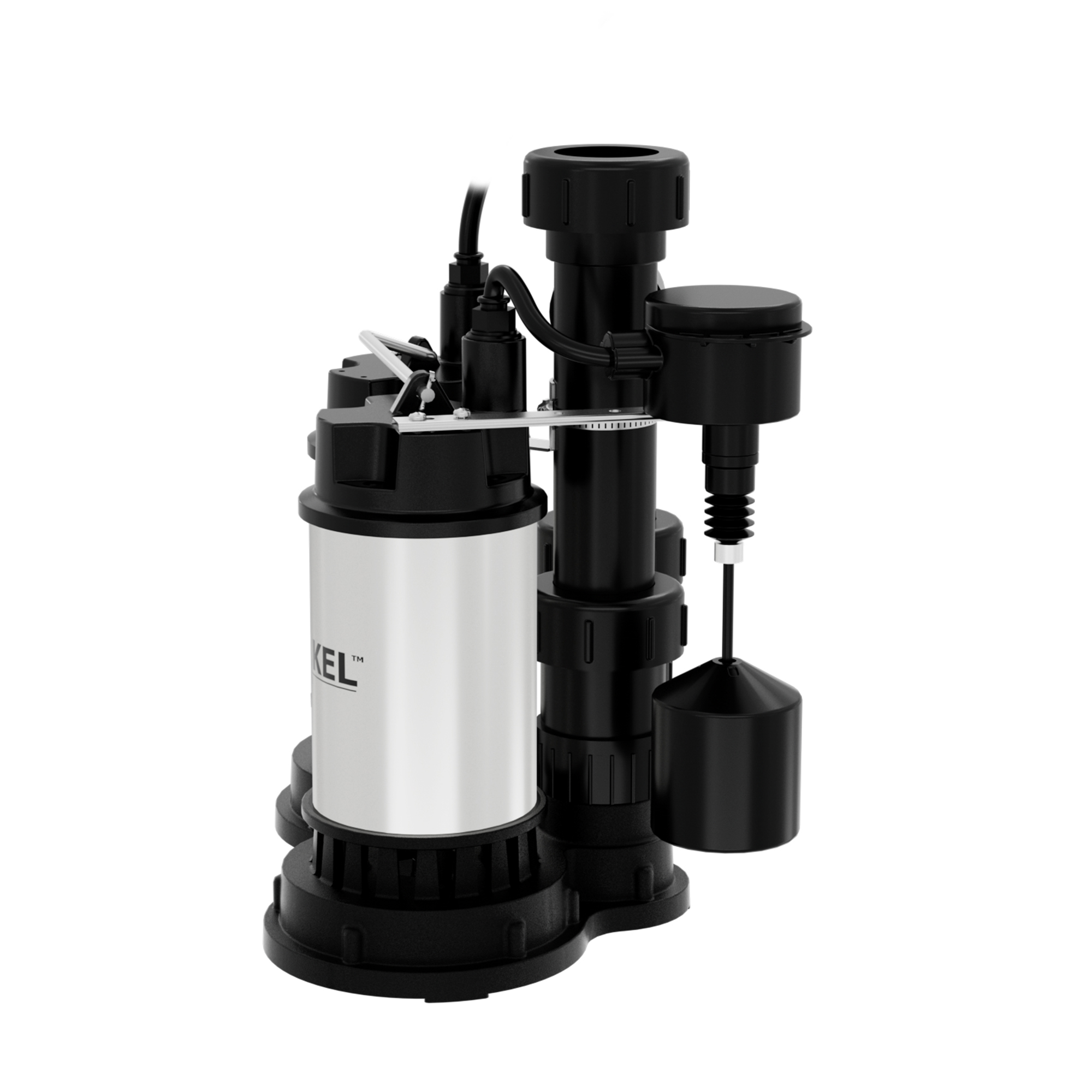

• Primary Pump - 120V
• Stainless steel and cast iron construction
• Upper and lower ball bearings
• Vertical float switch

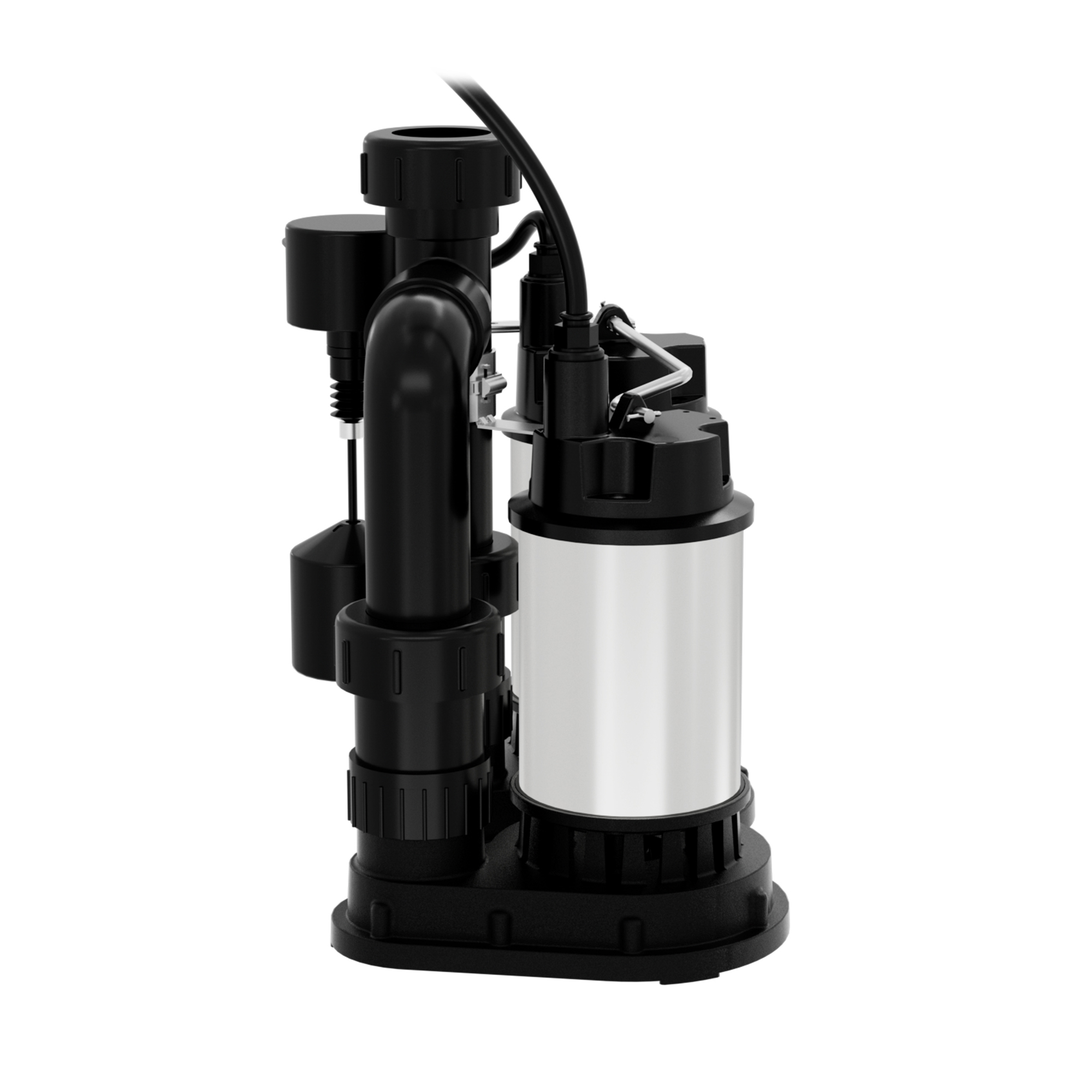

• DC Backup Pump - 12 DC
• Stainless steel and cast iron construction
• Upper and lower ball bearings
