Voltage (VAC):

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Switch:

Pump On/Off Levels:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

230

60Hz

Single

3,450

PSC

Class B

S1, Continuous

Mechanical Seal

Stainless Steel

Ball Bearing

Ball Bearing

Oil Cooled

1-1/2" NPT

20 ft.

SOOW 16AWG

Cast Iron

Cast Iron

Cast Iron

Manual

NA

NBR

3/4"

130 degrees (F)

Stainless Steel

Product Brochure

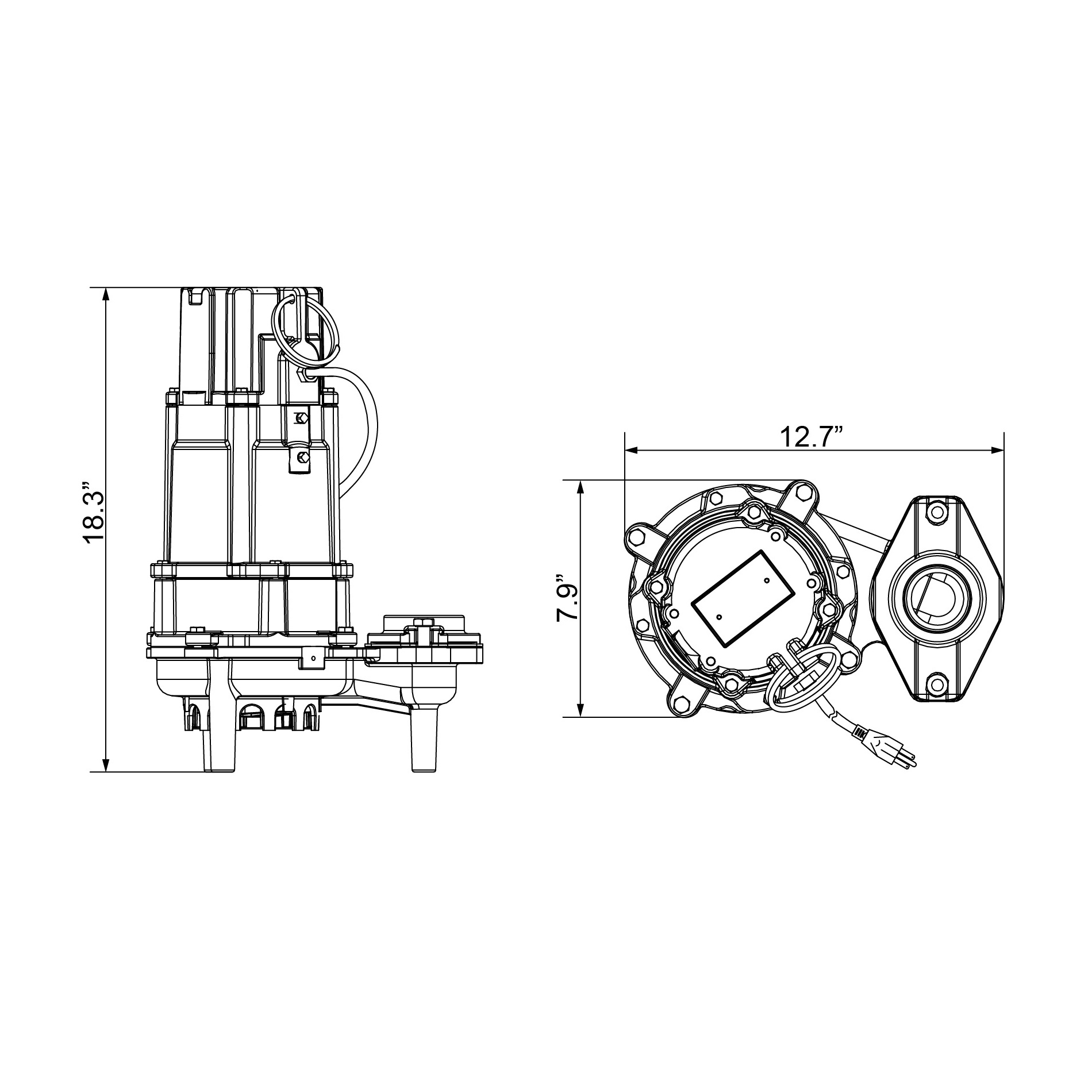

Dimensional Drawing

Installation Guide

Product Catalog

• Non-clog vortex impeller passes 3/4" solids
• Cast iron body and intake
• High efficient, PSC motor with thermal overload protection
• Rated for continuous duty
• Upper and lower ball bearings
• Carbon ceramic mechanical seal
• 20 ft. power cord
