Voltage (VAC):

Amps:

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Shredding Ring:

Switch:

Pump On/Off Levels:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

230

12.5

60Hz

Single

3,450

Oil Filled, CSCR

Class B

S1, Continuous

SiC / Carbon

Stainless Steel

Ball, Oil Lubricated

Ball, Oil Lubricated

Oil Cooled

2" NPT

20 ft.

SOOW 14AWG

Cast Iron, Class 30

Cast Iron, Class 30

Cast Iron, Class 30

440 SS Two-Blade, 55-60C RH

Piggy-Back Tethered

15.25" / 8.7"

NBR

2"

104 Degrees (F)

Stainless Steel

Product Brochure

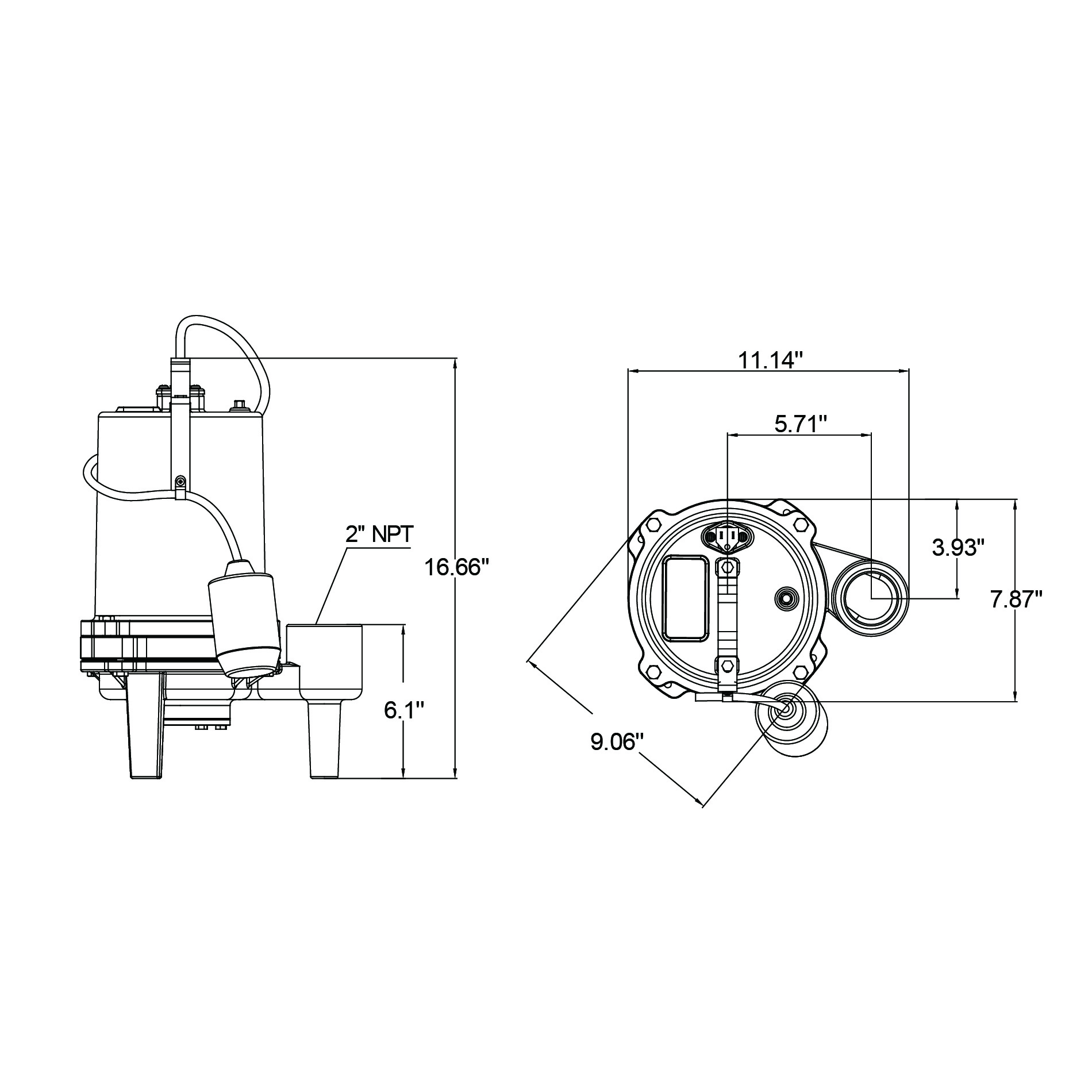

Dimensional Drawing

Installation Guide

Product Catalog

• Stainless steel cutter
• Non-clog vortex impeller
• High torque CSCR motor
• Rated for continuous duty
• Double carbon ceramic mechanical seal
• Piggy-back wide angle tethered float switch
• 20 ft. power cord

APPLICATIONS

Designed to grind and pump sewage containing tough materials including disposable wipes, tissue paper, and sanitary napkins. A cutter inside the inlet will grind materials into small particles.
