Voltage (VAC):

Amps:

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Shredding Ring:

Switch:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

230

7.5

60Hz

Single

3,450

CSCR

Class B

S1, Continuous

Mechanical Seal

Stainless Steel

Ball Bearing

Ball Bearing

Oil Cooled

1-1/4" NPT

20 ft.

SOOW 14AWG

Cast Iron, Class 30

Cast Iron, Class 30

Cast Iron, Class 30

440 SS Two-Blade, 55-60C RH

Manual

NBR

Slurry

104 Degrees (F)

Stainless Steel

Product Brochure

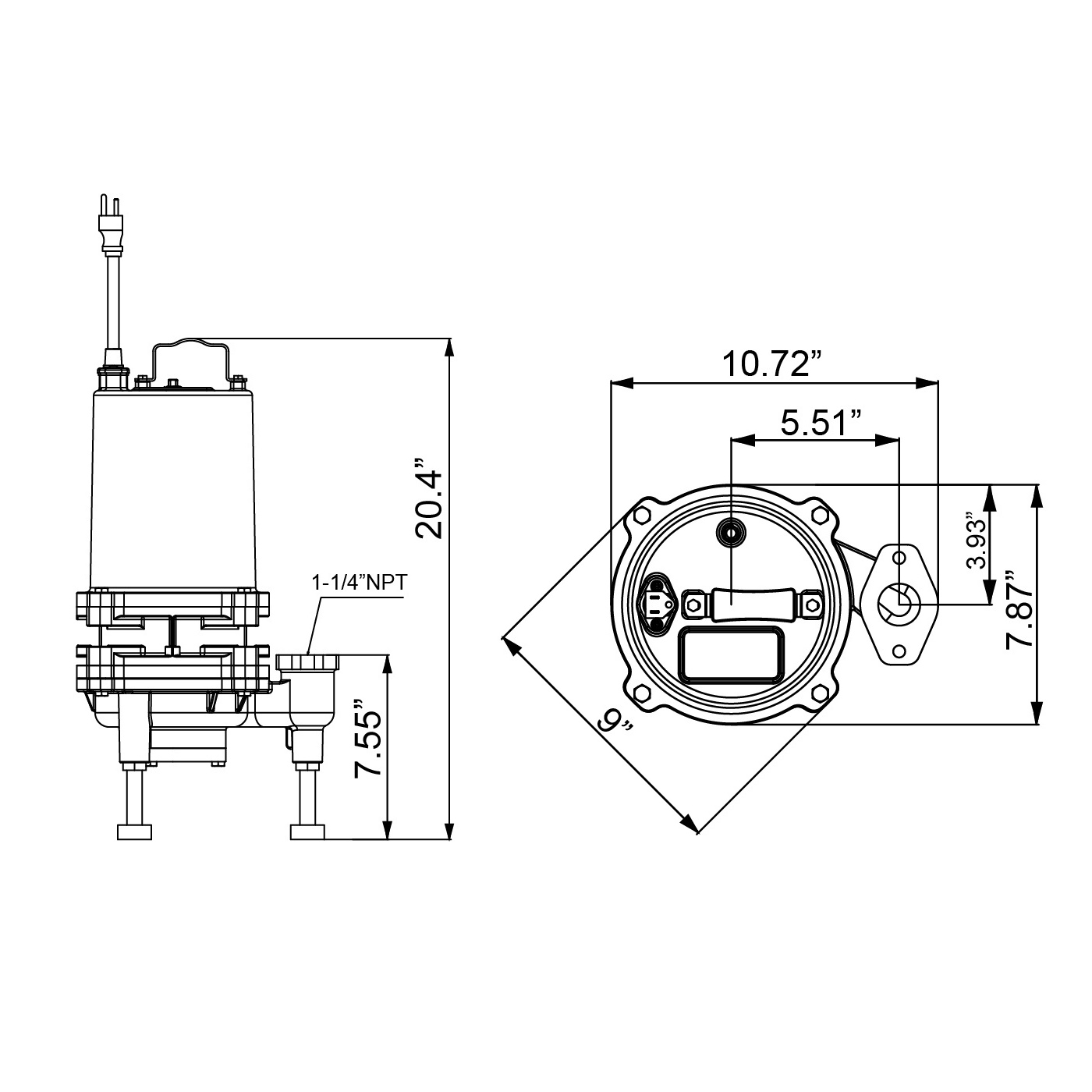

Dimensional Drawing

Installation Guide

Product Catalog

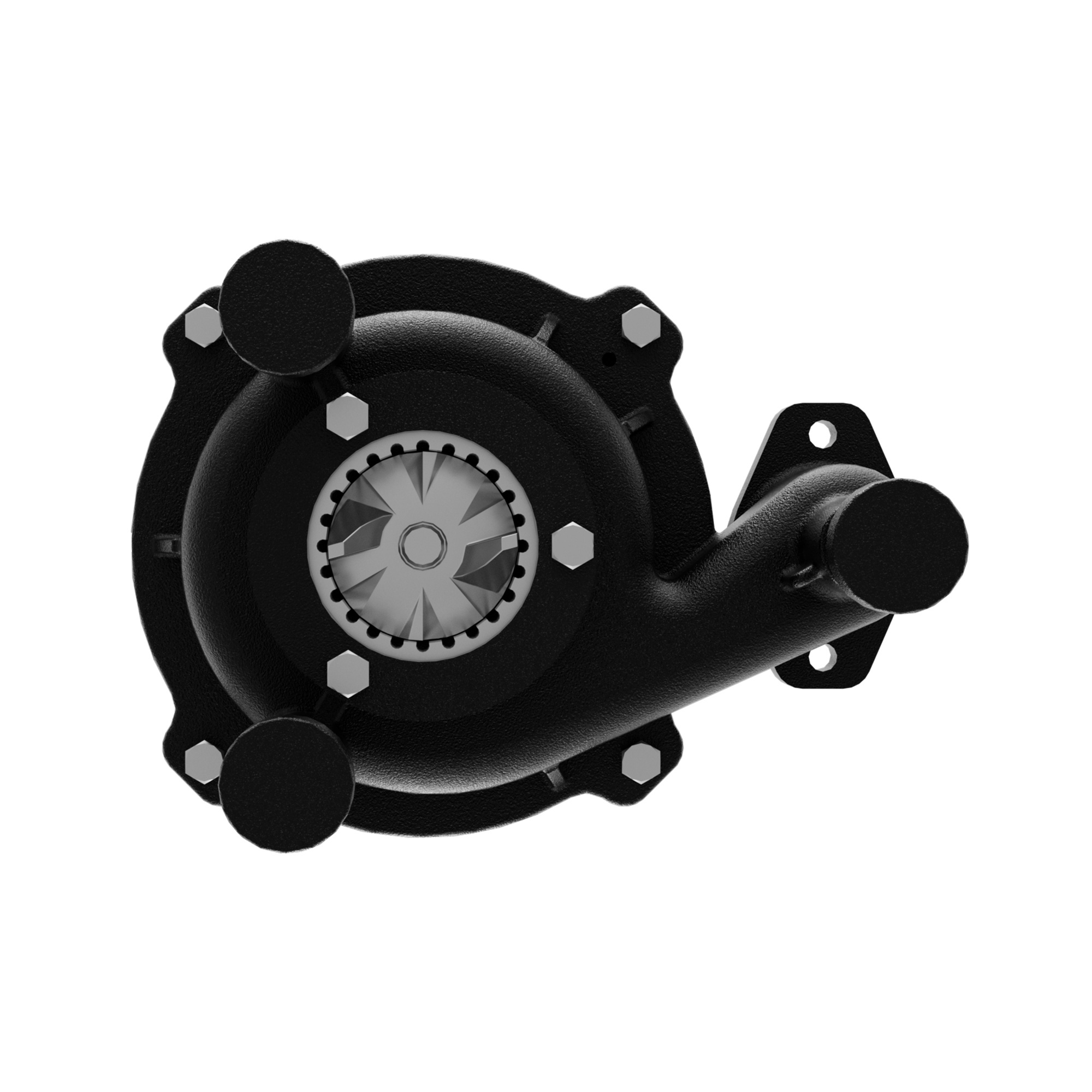

• Stainless steel cutter
• Non-clog vortex impeller
• High torque CSCR motor
• Rated for continuous duty
• Double carbon ceramic mechanical seal
• 20 ft. power cord

APPLICATIONS

Designed to grind and pump sewage containing tough materials including disposable wipes, tissue paper, and sanitary napkins. A cutter inside the inlet will grind materials into small particles.
