Voltage (VAC):

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Switch:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

120

60Hz

Single

1,750

PSC

Class B

S1, Continuous

Mechanical Seal

Stainless Steel

Ball Bearing

Ball Bearing

Oil Cooled

2" NPT

20 ft.

SOOW 14AWG

Cast Iron

Cast Iron

Cast Iron

Manual

NBR

2"

130 degrees (F)

Stainless Steel

Product Brochure

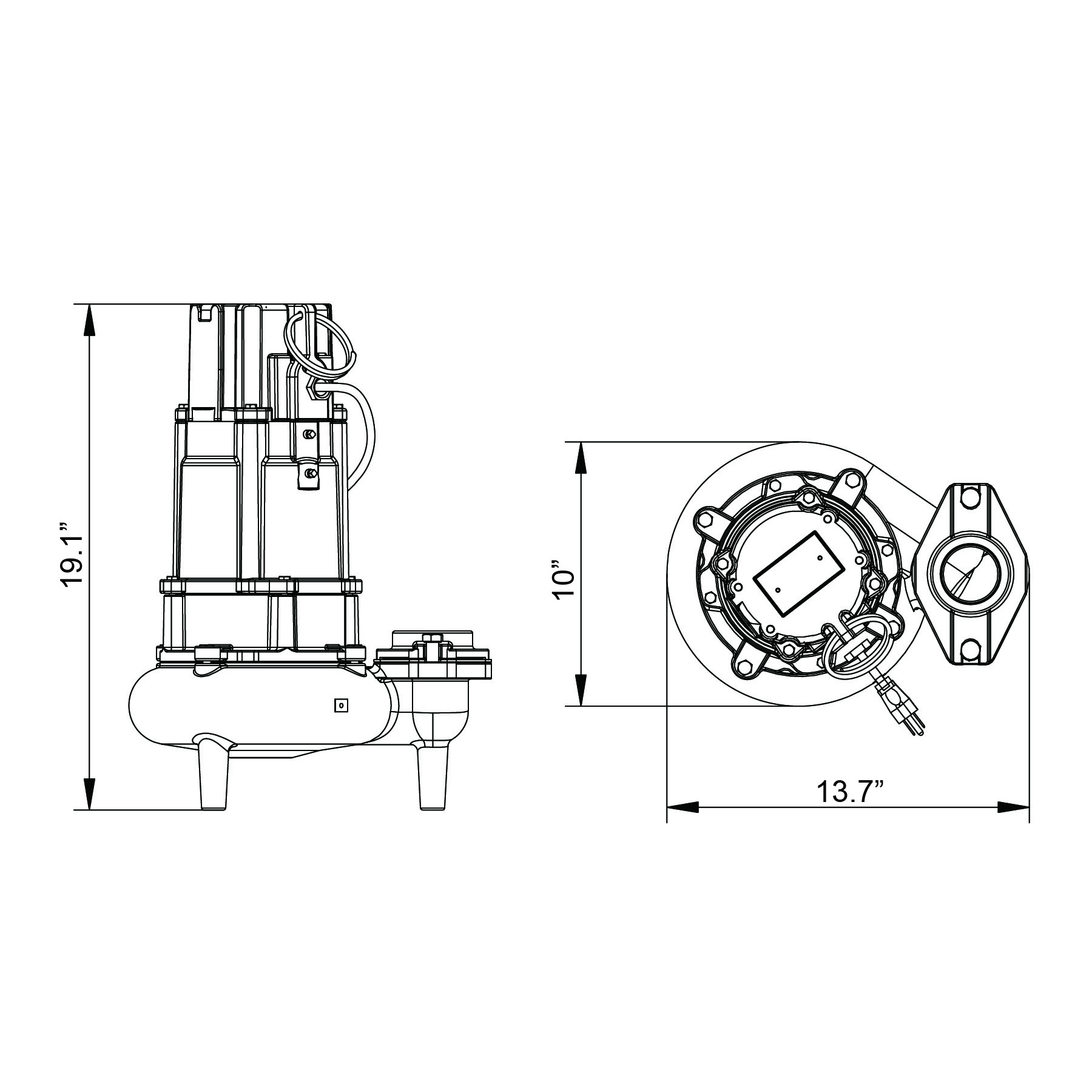

Dimensional Drawing

Installation Guide

Product Catalog

• Non-clog vortex impeller passes 2" solids
• High efficient, PSC motor with thermal overload protection
• Rated for continuous duty
• Upper and lower ball bearings
• Carbon ceramic mechanical seal
• 20 ft. power cord
