Voltage (VAC):

Hertz:

Phase:

RPM:

Motor Type:

Insulation:

Duty Rating:

Shaft Seal:

Motor Shaft:

Upper Motor Bearing:

Lower Motor Bearing:

Cooling:

Discharge Size (NPT):

Cord Length (ft.):

Cord Type:

Motor Housing:

Volute:

Impeller Material:

Switch:

Pump On/Off Levels:

O-Rings:

Solids Handling:

Max. Liquid Temperature:

Fasteners:

120

60Hz

Single

3,450

PSC

Class B

S1, Continuous

Lip Seal

Stainless Steel

Ball Bearing

Ball Bearing

Water Cooled

1-1/4" NPT

15 ft.

SJTW 16AWG

Stainless Steel

Stainless Steel

Thermoplastic

Manual

NA

NBR

1/4"

95 degrees (F)

Stainless Steel

Product Brochure

Dimensional Drawing

Installation Guide

Product Catalog

• Stainless steel body with thermoplastic intake
• High efficient, PSC motor with thermal overload protection
• Rated for continuous duty
• Upper and lower ball bearings

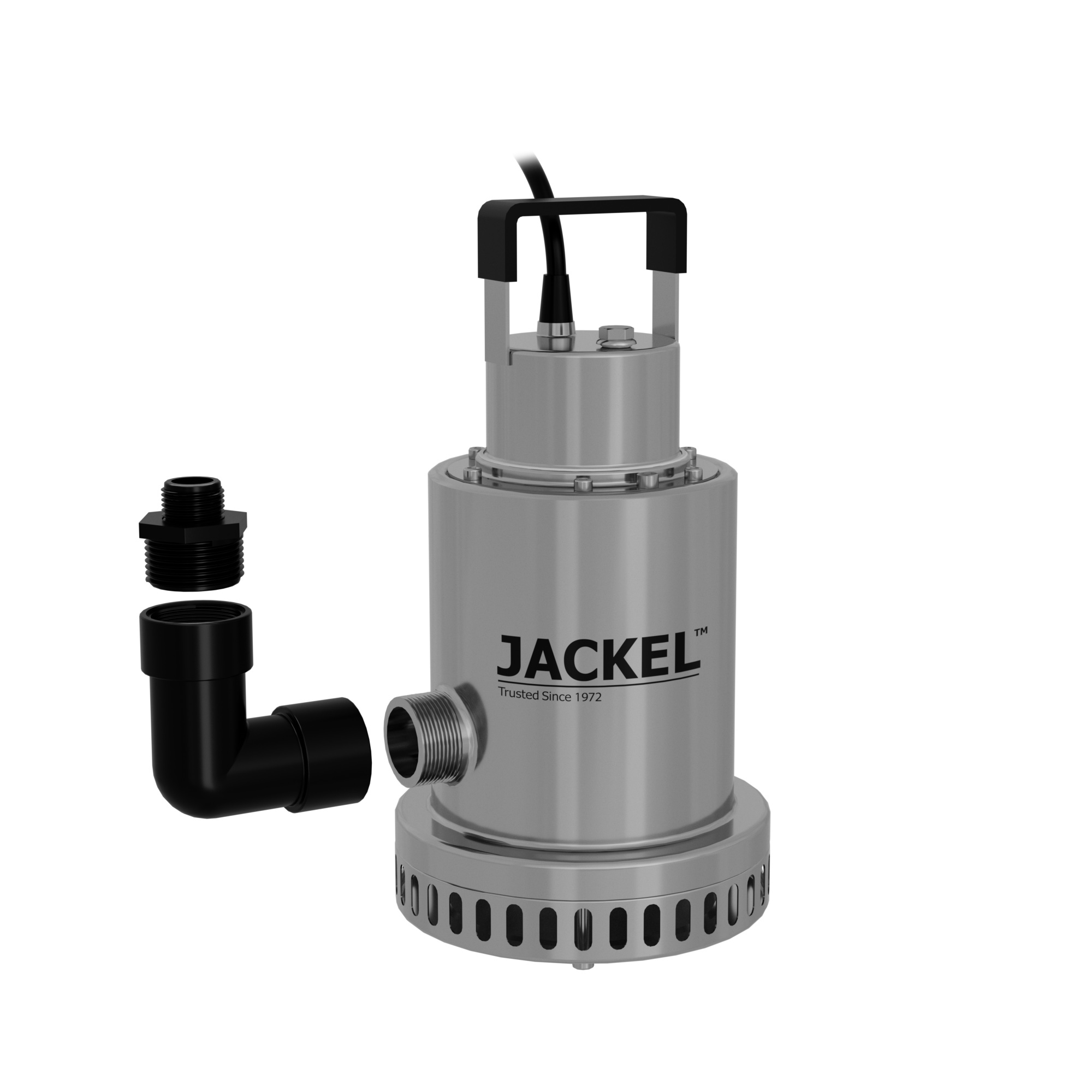

• 1-1/4" male NPT; includes 1-1/4" female NPT 90 degree elbow, and 1-1/4" MNPT x 3/4" hose adapter
• 15 ft. power cord
